R7 242,86 exc VAT

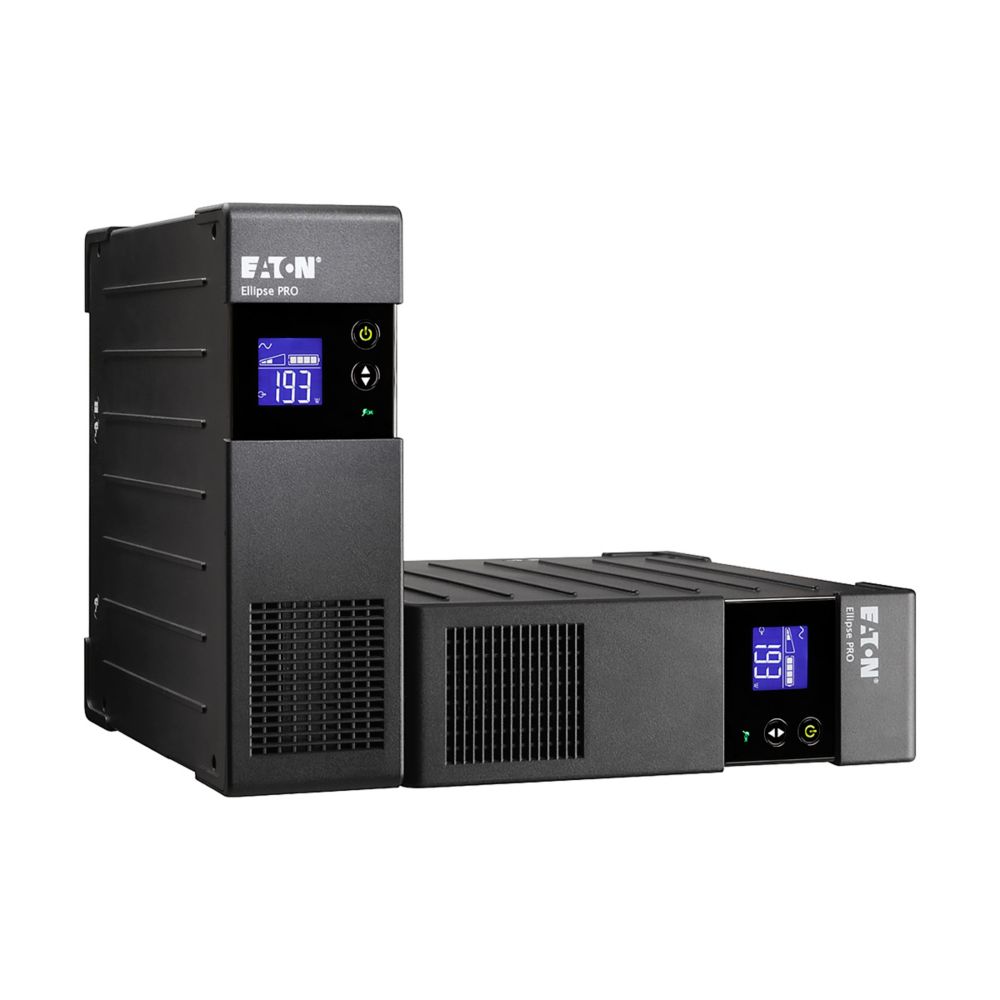

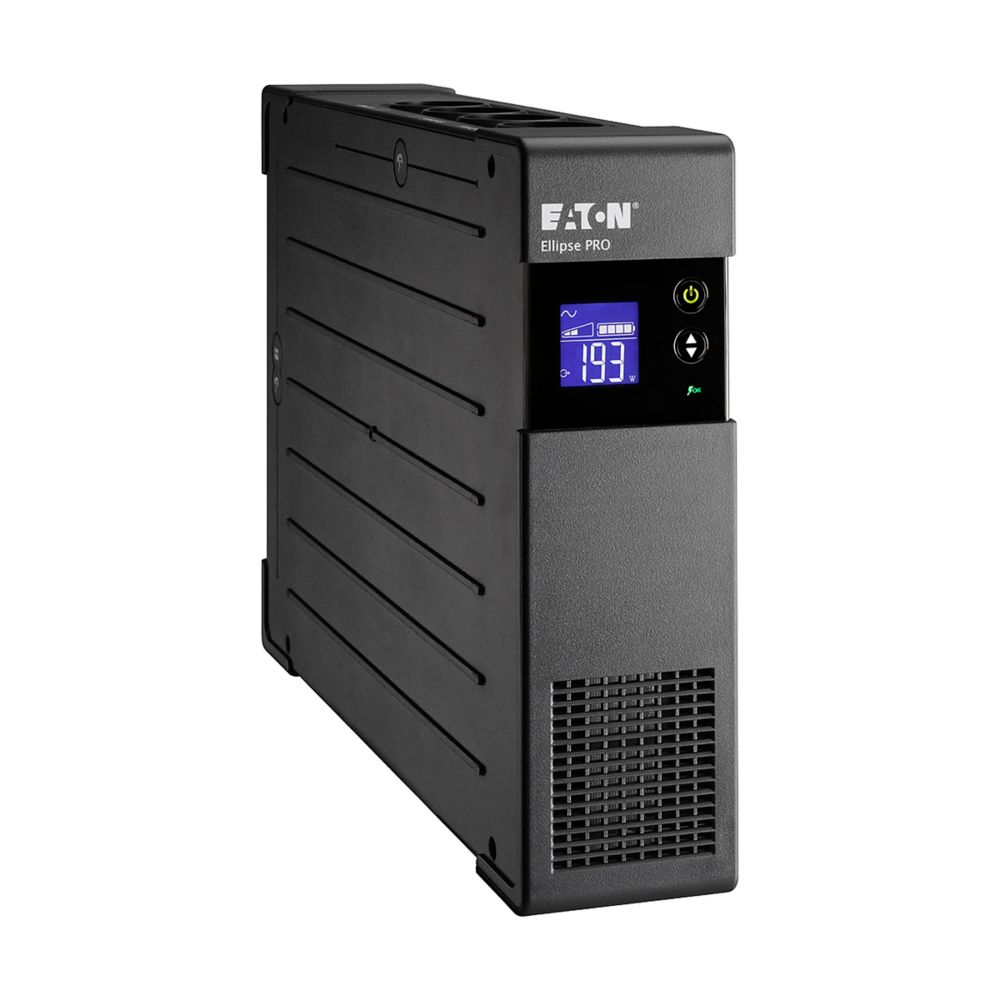

Eaton Ellipse PRO UPS IEC, 1600 VA, 1000 W, Input: C14, Outputs: (4) C13, (4) C13 surge only, Tower
In stock (can be backordered)
| Product Name |
Eaton Ellipse PRO UPS
|
| Catalog Number |
ELP1600IEC
|
| UPC |
743172438256
|
| Product Length/Depth |
82 mm
|
| Product Height |
275 mm
|
| Product Width |
390 mm
|
| Product Weight |
11.3 kg
|
| Warranty |
3 year
|
| Compliances |
CE Marked
|
| Certifications |
IEC/EN 62040-1
IEC/EN 62040-2 CE EAC |
| Electrical input | Input connection: C14 Input nominal voltage: 230V default (220/230/240V) Nominal frequency: 50/60 Hz Input voltage range: 165-285 V (adjustable to 150-285 V) Input frequency range: 46-70 Hz |
|---|---|

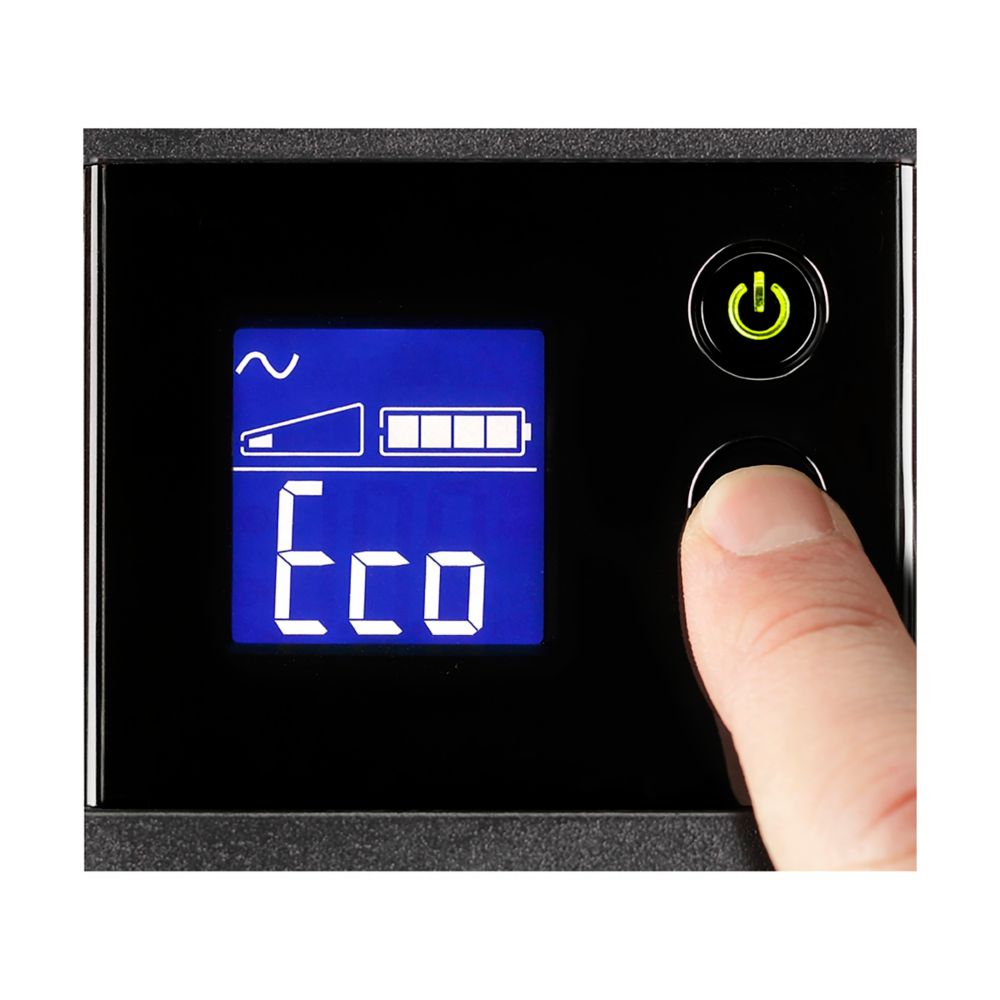

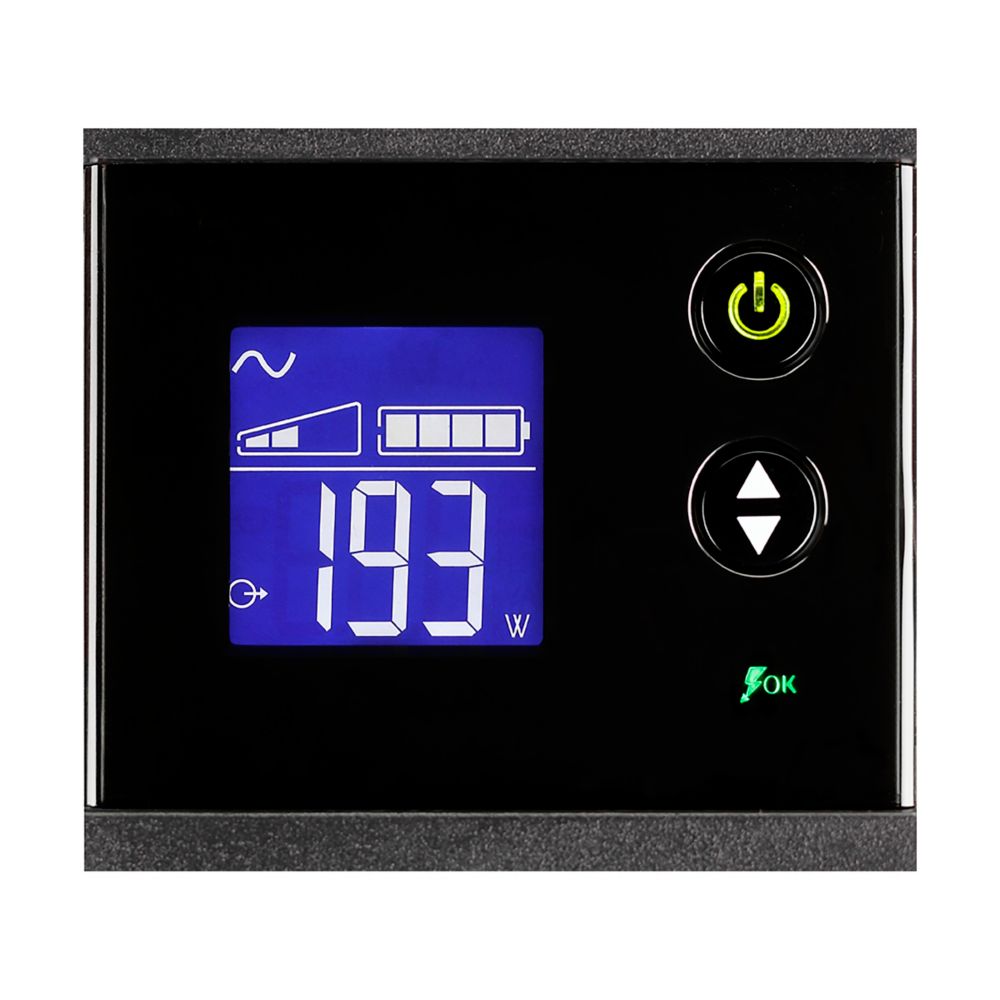

| Communications | Includes network card: No Communication: USB port (HID compliant) Ethernet interface: No User interface: LCD (UPS status and measurements, configuration of UPS settings) Potential free switch contact: No Expansion slots: No Software compatibility: Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings) Type of interface: USB |

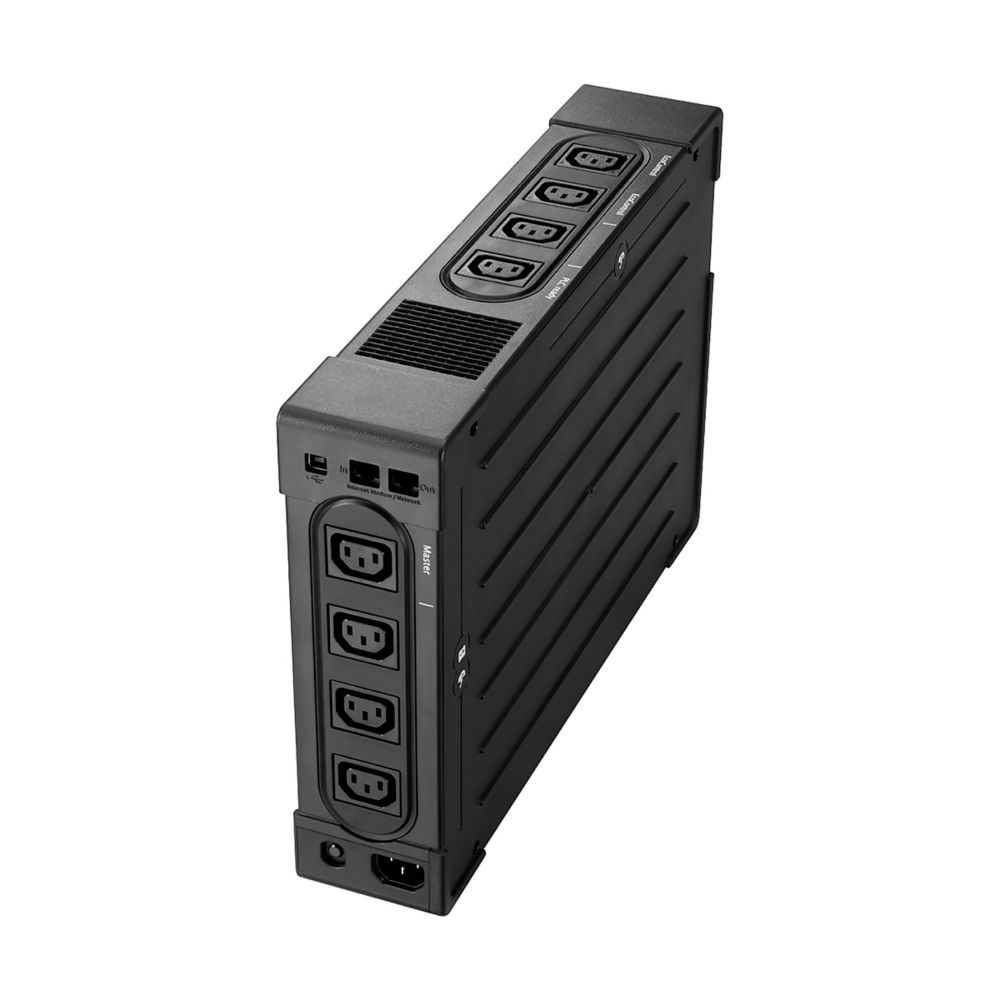

| Electrical output | Receptacle: (4) C13, (4) C13 surge only Voltage: 230V Wattage: 1000 W Output power factor: 0.6 Output voltage range: 176-284 V Output nominal voltage: 230V default (220/230/240V) Feed type: 1 Topology: Line-interactive VA rating: 1600 VA |

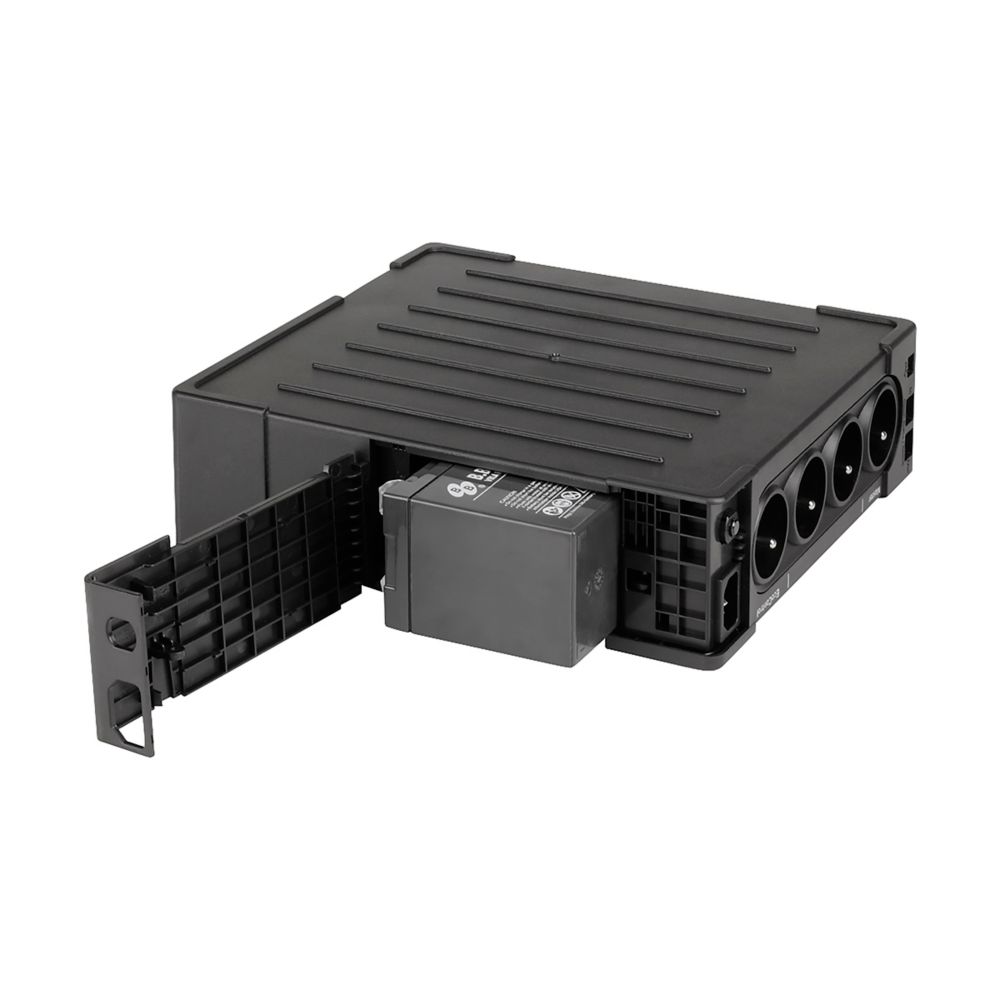

| Battery | Battery type: Sealed, lead-acid Runtime graph: Battery replacement User replaceable: Battery quantity 2 Battery management: Replaceable batteries, Automatic battery test, deep-discharge protection, cold-start capable Battery rating: 12 V / 9 Ah Extended battery capability: No |
